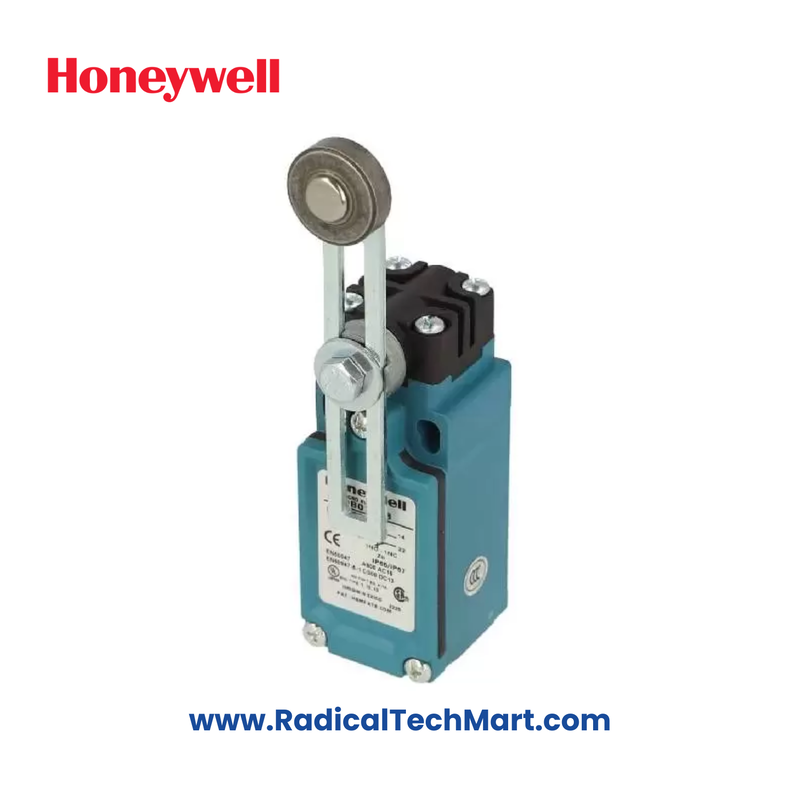

GLDB01A2B Honeywell Limit Switch

Product Description

• Brand: Honeywell
• Model: GLDB01A2B

Actuators:

• Side rotary
• Top pin plunger
• Top roller plunger
• Top roller lever
• Top wobble actuator

Termination Options:

• 0.5-14 NPT
• PG 13.5
• 20 mm
• PF 1/2
• Deutsch style 4-pin connector
• Other cable/connector options available upon request from the Honeywell representative

Contact Options:

• GLC metal housing and GLD plastic housing: 1NC/1NO, 2NC, 2NO
• GLE metal housing: 1NC/1NO, 2NC, 2NO, 2NC/2NO

Contact Type:

• Snap-action
• Slow-action break-before-make (BBM)
• Slow-action make-before-break (MBB)
• Slow action

Contact Material:

• Silver (standard)
• Gold plated (for low-energy applications)

Electrical Ratings:

• Thermal current (Ith): 10 A
• Rated insulation voltage (Ui): 300 V
• Rated impulse voltage: 2.5 kV

Sealing:

• NEMA 1, 4, 12, 13
• IP66

Operating Temperature:

• -40 °C to 85 °C [-40 °F to 185 °F]

Mechanical Life:

• Up to 10 million cycles

Pollution Code:

• 3

Max. Actuation Frequency:

• 250 operations/minute (general)
• 100 operations/minute (for wobbles)

Shock Resistance:

• 50 g per IEC 60068-2-27

Vibration Resistance:

• 10 g per IEC 60068-2-6

Approvals:

• CE
• UL
• CSA
• CCC1

Conforms to Standards:

• EN50047
• IEC/EN 60947-5-1
• CSA C22.2 #14
• UL 508
• CCC1 GB14048.5
• EN45545-2 (GLC/GLE)
